SIGNAL MATE LLC

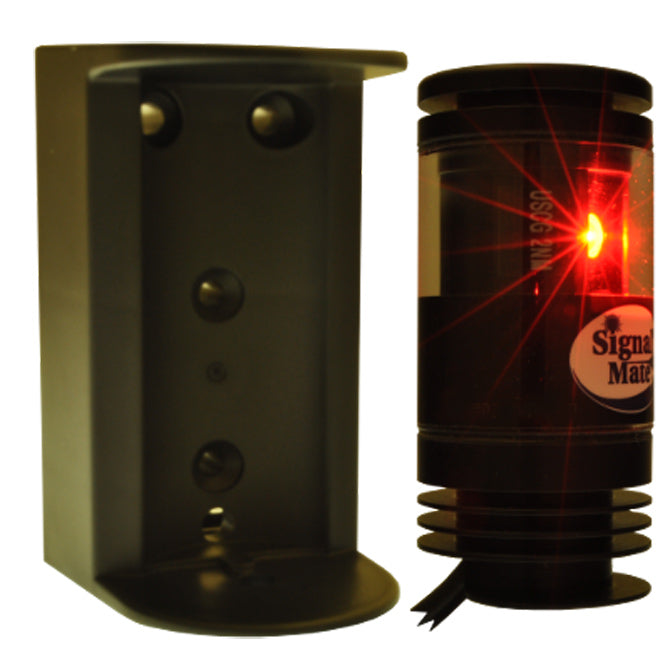

Signal Mate Port LED Navigation Light

SKU: SIN 2NM112R

  • Sale
  • Regular price $219.00
Shipping calculated at checkout.


Port Navigation Light

2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 50 meters (164 feet). Used by military, commercial and recreational  vessels worldwide.

Specifications:

  • Visibility: 2NM Port LED Navigation Light
  • Model #: 2NM112R
  • Certified: USCG Certified, ABYC A-16, 72 COLREGS
  • Boat type: Commercial, power, sailboat to 50 meters (164 feet).
  • Horizontal Viewing Angle: 112.5 degrees
  • Voltage Range: 10-30 VDC Current Draw: 0.100 amps at 12 VDC
  • Protection: Polarity & 1500 watt surge
  • LED: High Brightness; 50,000 hours LEDs: 1 Watts: 1
  • LED Driver: Constant Current EMI: Passive filtering.
  • Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
  • Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
  • Installation: 2 wire
  • Durability: Water & Vibration proof
  • Dimensions: Height 3.25” x 1.5” Diameter Weight: 6.4 oz.
  • Mounting: ¼” x 20 female threads on bottom of light for mounting.
  • Bracket Included: BRKTTERM with wire termination area in rear of fixture.
  • Brackets Optional: BRKT360, PADPT1, PADPT75
  • Warranty: 5 Year Limited Warranty covering materials and workmanship.
  • Made in USA.
