RC Series Windlasses

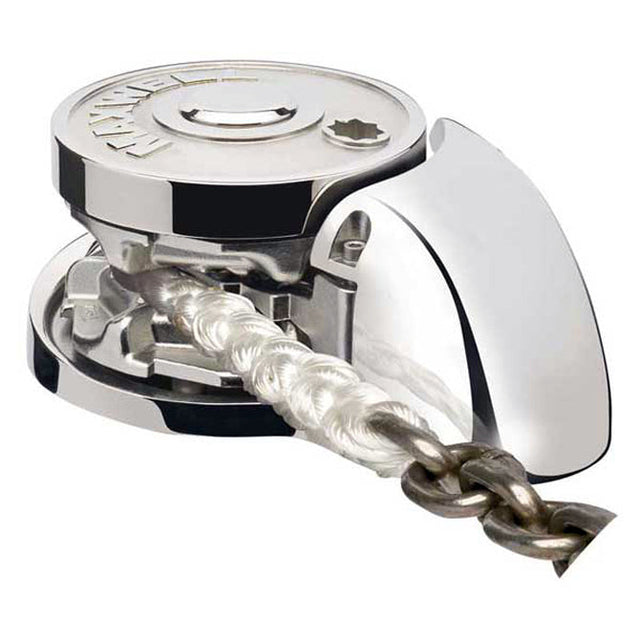

RC6 Rope/Chain Windlass

These stainless steel low profile windlasses feature a patented Maxwell Wave Design® chainwheel. The design of this chainwheel offers superior holding power with less wear on the rope. T chainwheel will accommodate any marine type chain. No need to worry about HT or BBB or PC—the chainwheel handles all of them! Designed for easy installation, the motor can be oriented in any of 10 different positions. The huge through-deck hawse pipe ensures easy entry and exit of the rope/chain or all chain rode. Includes dual direction solenoid, breaker panel, up/down panel switch and emergency handle.

• Style: Vertical
• Rode Type: Rope/chain
• Case Material: Type 316 stainless steel
• Capstan/Gypsy Material: Stainless steel
• Boat Length: To 35'
• Rode Size: 1/4" chain, 1/2" rope
• Max. Pull: 770 lb.
• Voltage/Draw: 12V/70A
• Speed Up/Min.: 69'(200lb.)
• Speed Down/Min.: 69'
• Height: 3-3/16"
• Width: 5-3/4"
• Length: 7-3/4"
• Warranty: Three years
