Imtra

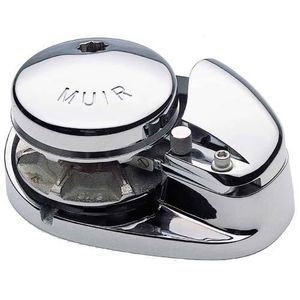

Storm 2200 Windlass Low Profil

SKU: IMT MSS2200R12E

  • Sale
  • Regular price $4,236.00
Shipping calculated at checkout.


Features:
  • Dual Direction, Permanent Magnet Motor
  • Stainless Worm Drive, Self-Aligning Radially Adjustable Gearbox
  • 316 Stainless Steel Finish
  • Bronze Gears
  • Stainless Mainshaft
  • Swiveling Chainpipe
  • Chrome Chain Stripper with Stainless Steel Band
  • Stainless Steel Studs, Washers, and Nuts
  • Ideals for boats ranging from 38' - 48' (12-15m)
Specifications:
  • Version: Low Profile
  • Vessel Length: 38-48 ft (12-15m)
  • Voltage: 12VDC
  • Motor Wattage: 1200W
  • Max Load: 2200 lb (1000 kg)
  • Work Load: 550 lb (250 kg)
  • Amps Work Load: 120
  • Max Line Speed: 50 ft/min (15 m/min)
  • Chain Sizes: 1/4BBB or HT 5/16BBB or HT 3/8BBB or HT
  • Rope Sizes: 1/2 9/16 5/8 in.
  • Finish: 316 Stainless Steel
  • Weight: 61.000 lbs
