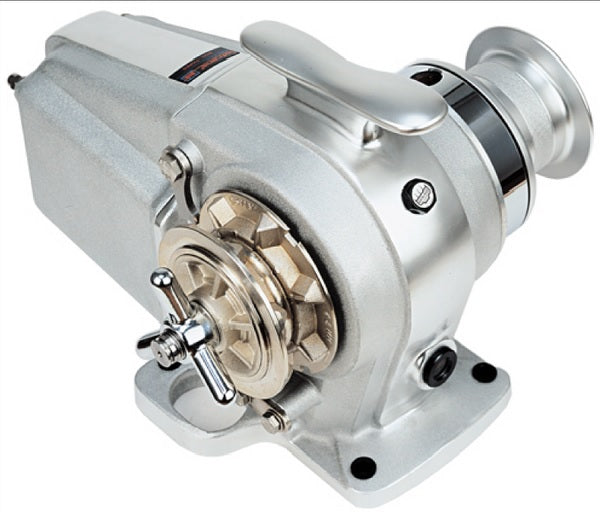

Tigres windlass is one of the most popular horizontal boat winches sold today. Lofrans Windlasses are manufactured with marine grade aluminum alloy. The body of the Tigres is polished and then anodized, making it durable in the marine environment. The Tigres is a great option when below deck space is limited. The series wound motor and oil lubricated gear box are all mounted in the windlass above deck, making installation extremely simple.
Features:
Features:
- Top mounted snubbing cleat
- Standard manual overdrive
- All chain retrieval
- Oil level Window
- Anodized Finish
- Dual Direction, Series wound motor
- Bronze Gears
- Stainless Steel Worm Drive Gearbox
- Stainless Mainshaft
- Deck ring chain pipe
- Stainless chain stripper
- Manual Override
- Rope Capstan
- Power Supply: 12V
- Motor Wattage: 1500W
- Power Rating (lbs): 2300
- Finish: Anodized
- Approx. Amp Draw: 80-130
- Max Retrieval Speed (ft./Minimum): 80
- Chain Size: 1/4", 5/16", 3/8"
- Rope Size: 1/2" - 3/4" (Rope Drum)
