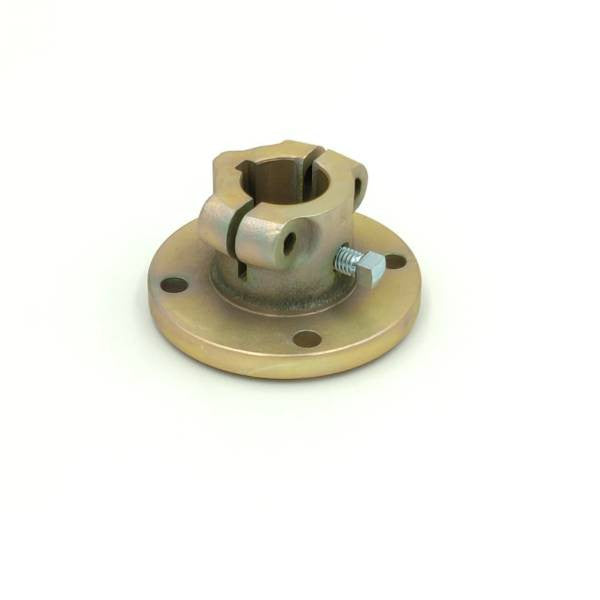

5" Short Split Buck Algonquin Shaft Couplers with 1-1/2" Bore (50500S1500)
5" short split shaft couplers are cast from ductile iron and precision machined to SAEJ755 specifications.
Fits Borg Warner, Hurth, ZF, Volvo and Newage marine transmissions.
Specifications:
-
5" flange diameter
-
1-1/2" bore with 3/8" keyway
-
4-1/4" bolt circle
-
4 x 7/16" bolts
-
2-1/2" male pilot ring
-
2-3/8" length
- 3/8" keyway opposite the set screw
-
Comes with pinch bolts, flange bolts and set screw
-
Gold colored zinc platin
