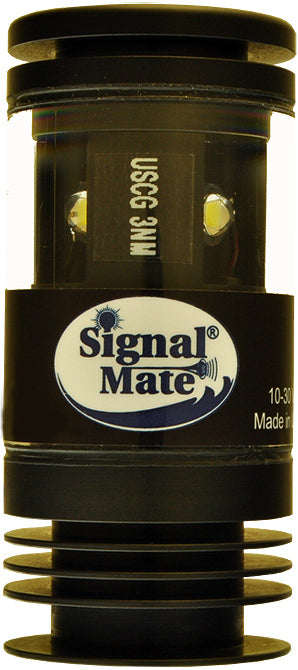

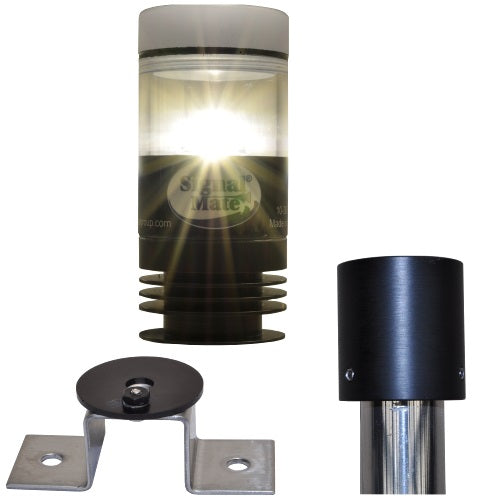

Masthead Steaming Light

Masthead (steaming) 3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.

Specifications

Visibility: 3NM Masthead (steaming) LED Navigation Light
Model #: 3NMMH225
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
Horizontal Viewing Angle: 225 degrees
Voltage Range: 10-30 VDC Current Draw: 0.160 amps at 12 VDC
LEDs: 2 Watts: 2 Color: White
Led Driver: Constant Current
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours EMI: Passive filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 2 wire
Durability: Water & Vibration proof
Dimensions: Height 3.25” x 1.5” Diameter Weight: 6.4 oz
Mounting: ¼” x 20 female threads on bottom of light for mounting.
Bracket Included: BRKTERM with wire termination area in rear of fixture.

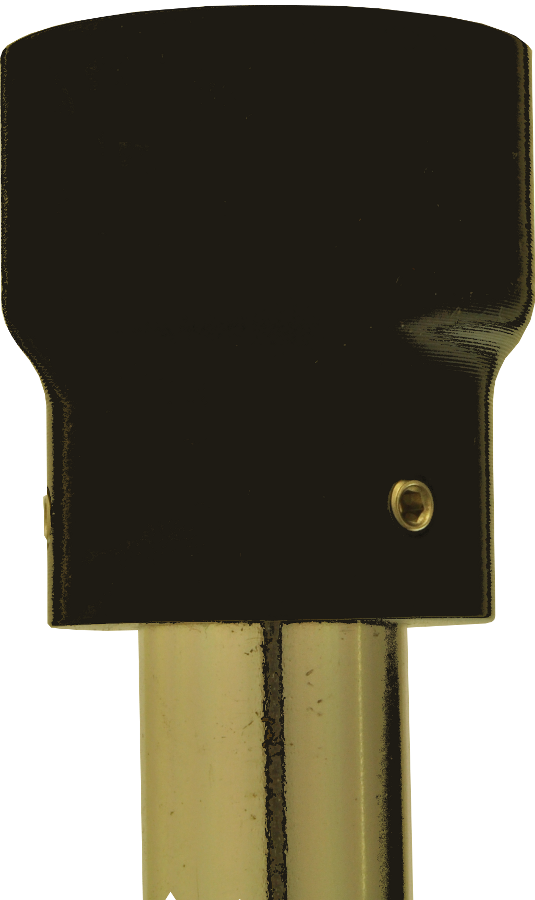

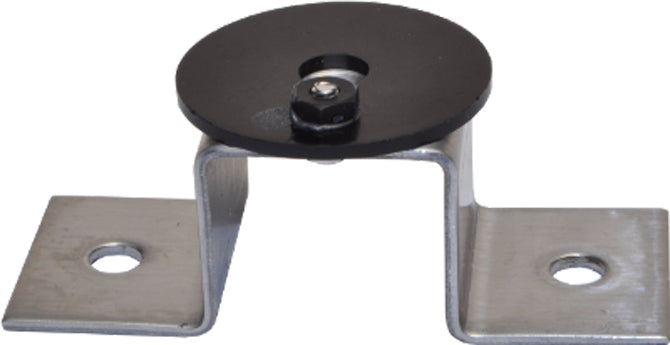

Brackets Optional: BRKT360, PADPT1, PADPT75
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA
