SIGNAL MATE LLC

Signal Mate Combo Masthead/Red Deck Light

SKU: SIN 3NMMHDKR

  • Sale
  • Regular price $495.95
Shipping calculated at checkout.

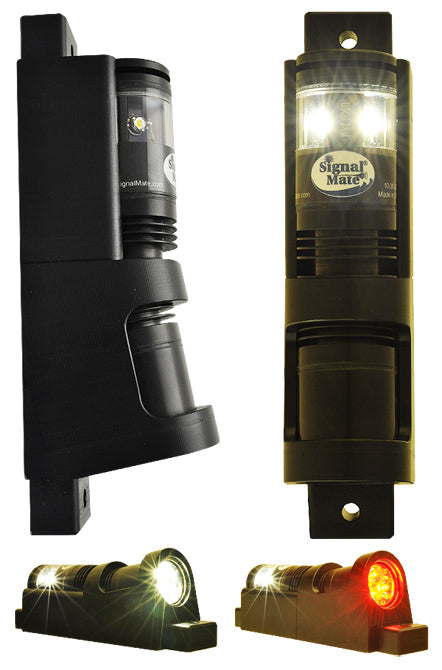

Combination Masthead with Red Deck Light

3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.

Specifications:

Visibility: 3NM Combination masthead with Red deck LED Navigation Light

Model #: 3NMMHDKR

Certified: USCG Certified, ABYC A-16, 72 COLREGS

Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).

Horizontal Viewing Angle: 225 degrees

Voltage Range: 10-30 VDC

Current Draw: 0.300/0.300 amps at 12 VDC

LEDs Masthead: 2   Watts: 2   Color: White LEDs Deck: 3 Watts: 3 Color: Red

Led Driver: Constant Current

Protection: Polarity & 1500 watt surge

LED: High Brightness 50,000 hours

EMI: Passive & Active filtering.

Construction: Hard Coated Anodized Aluminum, polycarbonate lens.

Wiring: 2 x 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.

Installation: 3 wire

Durability: Water & Vibration proof

Dimensions:  Height 7.75” x 2” Diameter  Weight: 17 oz

Mounting:  (2) ¼” holes top and bottom of fixture.

Bracket Included: Machined HDPE

Warranty: 5 Year Limited Warranty covering materials and workmanship.

Made in USA
