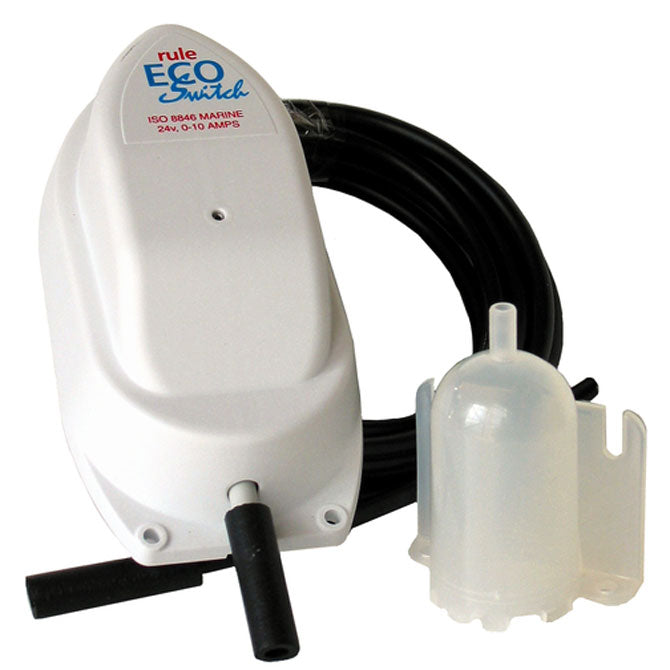

Rule ECO-Switch Air Operated Bilge Pump Control Switch
Air-operated automatic bilge system
The Rule ECO-Switch is an ecologically sound automatic bilge pump control switch. Featuring a non-mercury design, the pump operates with simple air pressure. As water rises in the bilge, air rises in the air tube that is attached to the switch. This air pressure activates the switch that controls the pump. There are no moving internal parts, as all wiring is out of the water, which means that there are no submerged electrical connections at all. Offering complete reliability and outstanding performance, the Rule ECO-Switch offers a viable alternative to traditional float switches.
- Dimensions: Switch – 155mm long, 75mm wide, 48mm high; Bell – 100mm long, 60mm wide, 30mm deep Tude - 3m long
- Maximum Current: 20(amps)
- No submerged electrics
- Safe, reliable, ignition-protected
- Mercury free
- Switch levels - Pre-set to 57mm ON. 25mm OFF
- Packaged Dimensions: L:24.00 x H:34.00 x W:9.00cm
- Actual Weight: 0.31 Kg (Approx. 0.51 Kg packed)
